shimmering obsidian

Created By: pseudometa, 51 Stars, Last Updated: 19/09/21 18:21:43

Love this? Please consider supporting its creator by starring or sponsoring this project on GitHub!

From the project's README:

Shimmering Obsidian

An Alfred Workflow with more than a dozen features for Obsidian

Overview

  • General Features
    • Search your Vault
    • Browse folders in your Vault in Alfred
    • Search Starred Files/Searches
    • Open Recent Files
    • Open Workspaces
    • OCR Screenshots
    • Paste URL into Selection
    • Search the Obsidian Documentation
    • Search Community Plugins/Themes and directly open them in Obsidian or GitHub
    • Create Backups of your Vault
    • Enter Dual Mode (Edit + Preview)
    • Create a new note
    • Open various folders in .obsidian
    • Open the Obsidian settings and Plugin Configurations
    • Search Carl Auto-Reponses
  • CSS-related features
    • Toggle a CSS Snippet
    • Search & Preview Community Themes
    • Open your current theme CSS file
    • Access your themes and snippets via Alfred
    • base64-encode a font file with one click
    • Quickly create a new CSS snippet from clipboard content
    • Display a list of Obsidian's default variables
  • Requirements & Installation
  • Workflow Configuration
  • Troubleshooting
  • Contribute
  • Credits

You also might want to check out the Alfred workflow by @hauselin, which focusses on a very different feature set, e.g. daily notes.

Usage Guide

Most features are triggered with dedicated Alfred keywords, as with any other Alfred workflow. The emphasized letter in the following feature list is the keyword you need to use. (Some features are triggered via Hotkey or Universal Action instead.)

General Features

o: [o]pen files in your vault.

  • This works similar to Obsidian's built-in “QuickSwitch” feature, but can be triggered without Obsidian running (in which case it will open Obsidian with the selected note). Press return to open the selected file in Obsidian.
    • cmd + return: Open the file in a new pane.
    • opt + return: Reveal the file in Finder.
    • fn + return: Append the content of your clipboard to the selected note. Then opens the note.
    • ctrl + return: Copy the Obsidian-URI to the selected file.
    • shift + return: Open the file in Dual Mode (see odual below for more information on Dual Mode.)
    • Press shift or cmd + y to preview the selected note via macOS' Quick Look feature. Press shift or cmd + y again to close the preview. (Unfortunately, YAML-Headers are not displayed properly.)
  • This command also looks for aliases, when they are defined in the YAML-Header. (Searching the aliases takes a short moment, though.)
  • When selecting a folder, you will “browse” the selected folder – this means that you are now searching only for files and folders inside that folder.
    • When browsing a folder, you also have the option to create a new note in that folder (using the template note from template_note_path).
    • Furthermore, you can go up and browse the parent folder of the current folder. So basically, you can fully navigate the folder structure of your vault via Alfred.
  • When you have set search_ignore_attachments in the workflow configuration to “true”, attachment file types (images, PDFs, videos) are ignored. This basically mimics the behavior of Obsidian's QuickSwitch.

os: Open [s]tarred Files and Searches

  • When you select a starred file, everything works exactly the same as the search with o, i.e. all the modifiers (cmd/ctrl/opt/fn/shift + return) apply the same way.
  • If you select a starred search, Obsidian will open the search pane with the query.

or: Open [r]ecent Files

  • Displays recent files that can be actioned on exactly the same way as the search with o, i.e. all the modifiers (cmd/ctrl/opt/fn/shift + return) apply the same way.
  • Up to 10 files are displayed

ow: Open a [w]orkspace

  • Displays a list of your workspaces. Select one to open the workspace.
workspace

Triggered via Hotkey: Take an OCR Screenshot.

  • Similar to the default Mac Hotkey cmd + shift + 4, you will be able to select part of your screen for a screenshot. However, instead of saving a screenshot, a new note will be created which contains the OCR-content of the selection.
  • To stay in line with the other macOS keyboard shortcuts for taking screenshots, I would suggest setting this hotkey to something like cmd + shift + 2.
  • If the file “OCR-Screenshot” already exists in your vault root, any subsequent OCR-Screenshots will instead append to this note. This is intended for taking a lot of OCR-Screenshots in succession, e.g., during a lecture or presentation.
  • You can change the prefix to OCR screenshots by changing the workflow configuration ocr_prefix.
    • Use a different date format by following Alfred's Placeholder-Syntax.
    • You can leave ocr_prefix empty or insert any other fixed value (e.g. a YAML-Header). Note that while not very visible, the workflow configuration variables do accept multi-line values.
  • For best results, you should set the proper languages to be recognized with the workflow setting ocr_languages.
OCR Screenshot

Triggered via Hotkey: Paste URL into selection.

  • Basically replicates the functionality of the plugin of the same name, that unfortunately does not work anymore. This means when you have text selected, and an URL in your clipboard, it would automatically get inserted when pressing the hotkey.
  • Suggested keyboard shortcut is cmd + k (after having deactivated the respective hotkey in Obsidian).paste url into selection

oh: Get [h]elp by searching the official Obsidian documentation.

  • This command mimics the search behavior on the official documentation site, meaning that it also searches for headings inside individual documentation pages. Press return to open in your default browser.
    • opt + return: Copy the link to your clipboard instead.
  • If there are no results for your search query, you can also directly search the Obsidian Forum.
  • After major updates of the Obsidian documentation, this Alfred workflow needs to recreate its index of the Obsidian documentation. You can do so by selecting the respective option when typing keyword osettings. (Index recreation can take a few seconds depending on your internet connection. You will be notified when it is done.)
Searching the Obsidian Documentation

on: Create a [n]ew note.

  • Using the template set in the workflow configuration (template_note_path), a new note will be created in your vault root.
  • If you have set use_quickadd to “true”, this command will instead trigger the QuickAdd Plugin.
  • Anything you write the keyword on (e.g. on foobar) will be used as argument:
    • Normally, this will become the filename of the note (e.g. foobar.md).
    • If you are using QuickAdd, this will search the QuickAdd options for the argument (e.g. foobar).
  • This command also works with Obsidian not running (in which case it will open Obsidian after note creation).

obackup: Create a [backup] of your vault.

  • Your whole vault will be compressed into a zip file and then moved to the location you specified in the workflow configuration (backup_destination). There will be a notification when the backup has been completed.
  • This command will respect the maximum number of backups you have set (max_number_of_bkps) to prevent taking up too much disk space. When the number is reached, every new backup causes the oldest backup to be deleted.
  • The hidden folders .obsidian and .trash are included in the backup.
  • Advanced users: you can use the following AppleScript snippet to trigger a backup. This is useful to create automated backups via launchd, cron jobs, or Keyboard Maestro.
tell application id "com.runningwithcrayons.Alfred"
    run trigger "backup-obsidian" in workflow "de.chris-grieser.shimmering-obsidian" with argument ""
end tell

op: Search Obsidian Community [p]lugins AND themes, directly from Alfred.

  • Press return to open the plugin in Obsidian's Community Plugin Browser. (Will open the GitHub Repository for themes instead, as there is not a way to trigger the Obsidians theme browser yet.)
    • Use cmd + return to open the plugin's GitHub repository instead.
    • Press opt + return to copy the GitHub repository URL to your clipboard.
    • ctrl + return will open plugin configuration when the selected plugin is installed.
    • For developers: Use fn + return to clone the GitHub Repository into the folder specified in the workflow configuration (download_folder_path). When a theme is selected, only the .css file will be downloaded instead.
  • Use shift or cmd + Y to open a Quick Look Preview of the theme. Press shift or cmd + Y again to close the preview.
  • Only plugins and themes officially included in the community plugins/themes are displayed — plugins/themes solely available via GitHub or still in review will not be shown.
  • Add "themes" to the keyword to only display themes (i.e., use op themes as keyword.).
  • The thousand separator used with the download numbers can be set in the workflow configuration (thousand_seperator).
plugin search

odual: Enter [dual] mode.

  • When the current note is in Editor Mode, will open a new pane with the current note in Preview Mode. When in Preview Mode, will open the new pane in Editor Mode. Basically, you will have both View Modes side by side.
  • Note that using the Force View Mode Plugin may result in the second pane opening in the wrong view.
  • Caveat #1: Opening the new pane as linked pane is not possible right now, as Obsidian does not expose that function via command palette. odual is therefore only able to open an unlinked pane.
  • Caveat #2: When you have more than one pane open, a pane that is not the leftmost is active, and the active pane has a different view mode than the leftmost pane, then odual will open in the wrong view mode. (Obsidian unfortunately does not expose enough information about the workspace state to ensure correct behavior for this case.)

osetting: Open the Obsidian [settings].

  • Also works when Obsidian is not running (like most commands of this workflow do).

Open Various Folders

  • o.obsidian: The hidden .obsidian folder located in your vault root will be opened in Finder.
  • oapplicationsupport: Open Obsidian's the Application Support folder.
  • oplugin: The plugin folder in the hidden .obsidian folder will be opened in Finder.
  • otrash: Open the hidden .trash folder located in your vault root will be opened in Finder. (Note that you have to select Move to Obsidian trash in the Obsidian settings under the Files & Links before deleted files can be found here.)

ovault: Change the [vault].

  • Conveniently switch the vault used by this workflow. (Currently, this workflow only works on one vault at the same time.)

ocarl: Search Carl's Autoreponses.

CSS-related Features

ocss: Access your [css] files.

  • Open a theme or CSS snippet in your default text editor.
  • Open the “themes” or “snippets” folder located in .obsidian in Finder.
  • Create a new CSS snippet in mere seconds: The CSS file will be placed in your snippet folder, filled with your clipboard content, named after the query you enter after ocss, and then opened in your default text editor. (Furthermore, this will open the Obsidian Settings in the background, to save you yet another click. 🙂)

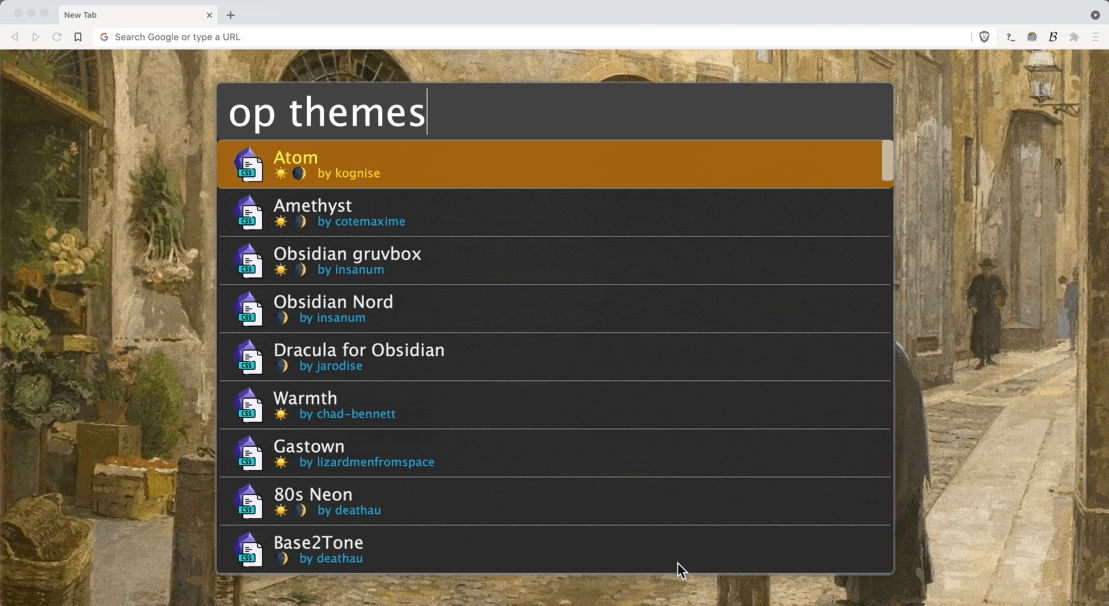

op themes: Search & Preview Community [themes].

  • Press return to open the GitHub Repository.
  • Use opt + return to copy the GitHub repository URL to your clipboard instead.
  • Press shift or cmd + Y to open a Quick Look Preview of the theme. Press shift or cmd + Y again to close the preview.
  • Only themes officially included in the community themes are displayed — themes solely available via GitHub or still in review will not be shown.
  • see also the op keyword further above, as this is basically a filter for op.
Theme Search

Triggered via Hotkey: Toggle one of your CSS snippets.

  • The snippet you wish to toggle must be set in the workflow configuration (toggle_snippet).
  • This feature is useful for some CSS Snippets that you regularly want to turn on and off, like e.g., the snippet to hide URLs, or the snippet to garble text.

Triggered via Hotkey: Convert a font file to CSS with base64.

  • This will take the selected font file (e.g., .tff or .woff), convert them into base64 and write the base64-encoded font into a CSS file, which will be placed into your snippets folder.
  • Alternatively, you can use the Universal Action feature form Alfred to trigger the conversion.
  • The Hotkey only works in Finder.
Conversion of CSS via universal command

ot: Open the current [t]heme file.

  • This will simply open the current Obsidian theme in your default text editor.
  • Will automatically retrieve which theme you have set, meaning ot will work correctly even when you regularly switch themes for theme development.
  • Pairs well with the Theme Picker Plugin.

odefault: Display (and search) a list of the font and color variables used in Obsidian's default theme.

  • Select a variable with return to copy the name to your clipboard.
  • Press cmd + return to copy it in the format var(--varname) instead.
  • Shoutout to @NothingIsLost for this feature.

Requirements & Installation

"Hard" Requirements

These requirements need to be installed, since this workflow cannot work without them.

  • Powerpack for Alfred (costs around 30€, depending on the current exchange rate to the British Pound).
  • Install the Advanced URI Plugin for Obsidian. (Needed to enable controling Obsidian from a third-party app like Alfred.)

"Soft" Requirements

These requirements are only necessary for specific features of this workflow. If you do not plan to use the respective feature, you can forego installing the requirement for it. It is recommended to install all requirements listed here to be able to use all features of Shimmering Obsidian.

Name Type Function
Hotkey-Helper Obsidian Community Plugin used to open plugins and their configuration directly in Obsidian via op
Tesseract Third-Party Software needed for OCR screenshots
qlmarkdown Third-Party Software used to preview markdown notes with shift or cmd + Y when searching with o, or, or os

If you have Homebrew, Tesseract and qlmarkdown can by installed via the following terminal commands:

brew install tesseract
brew install tesseract-lang
brew install qlmarkdown

Installation

  • Install the requirements listed above.
  • Download the latest release at GitHub. Double-click the .alfredworkflow file.
  • In some cases, you have to allow qlmarkdown to be executed before you can preview markdown notes via shift or cmd + Y (This is due to Big Sur's high security measures). Follow the instructions here to do that.
  • The first time you use the OCR screenshot feature, you might need to give Alfred permission to record your screen. You can do so under the macOS system settings (see image below).
Permissions for OCR Screenshots

When in use, this workflow checks regularly for new versions and auto-updates.

Workflow Configuration

After installing the workflow, you need to configure the settings of this workflow to make use of most of its features.

  1. You access the main workflow configuration by clicking the [x] at the top right of the workflow (see image below). There, you have the following configuration options:
    • vault_path: The absolute path to your obsidian vault, e.g., /User/pseudometa/MyVault or ~/Documents/obsidianVault.
      • You can use ~ in place of your home folder (useful for syncing settings accross devices.)
      • You can later on change the vault that you want to control with this workflow via the ovault keyword, as described in the 'Features' section.
    • backup_destination: Folder where the backups done by the obackup command should be saved.
    • max_number_of_bkps: maximum number of backups that should be stored at the backup destination folder. When the number is reached, every new backup cause the oldest backup to be deleted. (Decrease this number, when your backup folder becomes too big.)
    • download_folder_path: path where downloads from the op search should be placed
    • fontformat: format of the base64-conversion of font files, e.g., “woff2”
    • ocr_languages: set language codes of Tesseract, e.g., eng+deu for English and German. You can find out the code for your language(s) in this list.
    • ocr_prefix: Set the prefix for OCR Screenshots. Does accept dynamic content like the current date or time when you use Alfred's Placeholder Syntax. Note that while not easy to see, ocr_prefix can have multi-line values.
    • search_ignore_attachments: Whether to ignore attachment file types (images, PDFs, videos) when using the o search. Accepted values are “true” and “false”.
    • template_note_path: Template to use when creating new notes with the on command or when browsing a folder via the o command.
    • thousand_seperator: The thousand separator to use when download numbers are displayed, e.g., . or ,.
    • toggle_snippet: Full path to the CSS file in your snippet folder that you wish to toggle via hotkey.
    • use_quickadd: Instead of creating a new note based on a template (with the keyword on), will trigger the QuickAdd Plugin. Accepted values are “true” and “false”.
  2. At the top left of the workflow, there are some sky-blue fields. You need to double-click them to set the Keyboard Shortcuts you want to use for the respective commands.
  3. Users familiar with Alfred: You can change any keyword mentioned, like with any other Alfred workflow. (All keyword triggers are located to the very left of this workflow.)
Settings of this Workflow Setting Hotkeys

Troubleshooting

  • Make sure that all requirements are properly installed.
  • Check the documentation of the malfunctioning feature.
  • Update to the latest version of the workflow, chances are the problem has already been fixed.
  • For workflow settings which require a file or path, you have to enter the full absolute path, leading with a/ and without a trailing /. Do not use a vault-relative path.
  • If you have trouble with OCR screenshots, ensure you have given Alfred permission to record your screen as explained in the Installation Instructions.
  • In case the previewing of markdown notes via shift or cmd + Y does not work properly, make you have given "qlmarkdown" permission run on your system as explained in the Installation Instructions.
  • If you did all of the above and there is still something not working, create an issue, message me on the Obsidian Discord Server (my username there is @pseudometa), or write me on Twitter where my handle is @pseudo_meta.
    • Be sure to attach a debugging log, a screenshot, or a screen recording so I can figure out the issue.
    • You can get a debugging log by opening the workflow in Alfred preferences and pressing cmd + D. A small window will open up which will log everything happening during the execution of the Workflow. Use the malfunctioning part of the workflow once more, copy the content of the log window, and attach it as text file.

Contribute

This workflow is built in a very modular manner, so feel free to check out certain parts or suggest features via Pull Request. In particular, I would like to improve the speed of Alias Search and implement a Search for Tags, but I lack the coding knowledge to implement this in a sufficiently efficient way. Feel free to suggest implementations for that. 🙂

Credits

Most features of this plugin are only made possible by the invaluable Advanced URI plugin by @Vincent03.

This workflow has been created by @pseudometa (Discord) aka @pseudo_meta (Twitter), aka Chris Grieser (rl). If you find this workflow to be useful, feel free to donate via PayPal. In my day job, I am a PhD student in sociology, studying the governance of the app economy. If you are interested in this subject, check out my academic homepage and get in touch.
